Installation Manual

AT-AT Installation Manual

This document guides you through the complete local installation and execution of the API Threat Assessment Tool (AT-AT).

Prerequisites

Node.js ≥ 16
Python ≥ 3.10
npm ≥ 8
Git 2.44+
Recommended: PowerShell (Windows) or bash (Linux/macOS)

1. Clone the Repository

git clone https://github.com/YourOrg/API-Threat-Assessment-Tool.git
cd API-Threat-Assessment-Tool

2. Create `.env` Files

Each of the three components — frontend, api, and backend — require .env files. Below are their templates:

`frontend/.env`

SUPABASE_URL=https://your-project.supabase.co
SUPABASE_KEY=your-supabase-service-key
JWT_SECRET=your-secret
FRONTEND_URL=http://localhost:3000
PORT=3000
HOST=0.0.0.0
DANGEROUSLY_DISABLE_HOST_CHECK=true
DOCKER=TRUE

`api/.env`

SUPABASE_URL=https://our-link.supabase.co
SUPABASE_KEY=your-supabase-service-key
JWT_SECRET=your-secret
FRONTEND_URL=http://localhost:3000
PORT=3001
GMAIL_USER=at.at.noreply@gmail.com
GMAIL_CLIENT_ID=client_id
GMAIL_CLIENT_SECRET=client_secret
GMAIL_REFRESH_TOKEN=refresh_token
DOCKER=TRUE

`backend/.env`

PORT=9011
FRONTEND_URL=http://localhost:3000
SUPABASE_URL=https://our-link.supabase.co
SUPABASE_KEY=your-supabase-service-key
JWT_SECRET=your-secret
FRONTEND_URL=http://localhost:3000
DOCKER=TRUE

3. Repository Layout

/api/                Node/Express public API (OpenAPI served here)
/backend/            Python service(s) for scanning/analysis
/docs/               SRS, Service Contracts, OpenAPI (openapi.yaml), manuals
.github/workflows/   CI pipelines

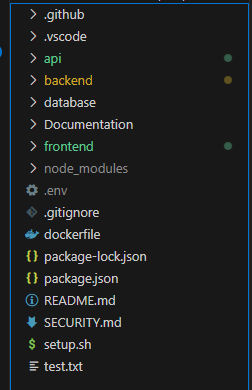

Structure

Setup and Running

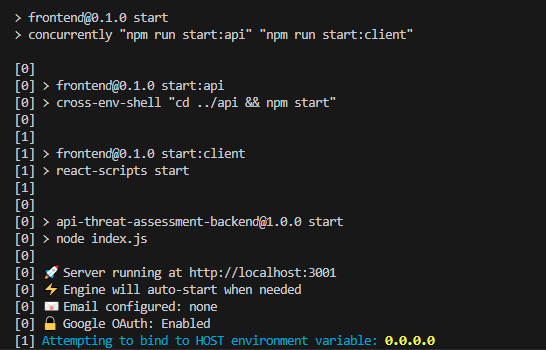

To run everything at once use

cd frontend
npm start

This will start the necessary requirements, however you can laucnh each individually.

4. Setup and Run Backend (Python)

cd backend
python -m venv venv
.\venv\Scripts\Activate      # Windows
# or: source venv/bin/activate  # macOS/Linux

pip install -r requirements.txt
python main.py

5. Setup and Run API (Node.js)

cd api
npm install
node index.js

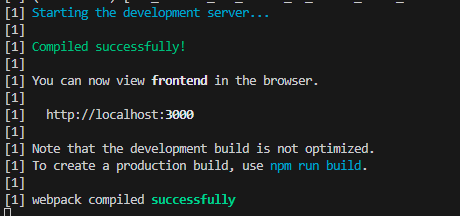

6. Setup and Run Frontend (React)

cd frontend
npm install
npm run start:client

If the start:client script fails with a host error, ensure your .env includes:

HOST=0.0.0.0
DANGEROUSLY_DISABLE_HOST_CHECK=true

7. Test in Browser

Open:

http://localhost:3000

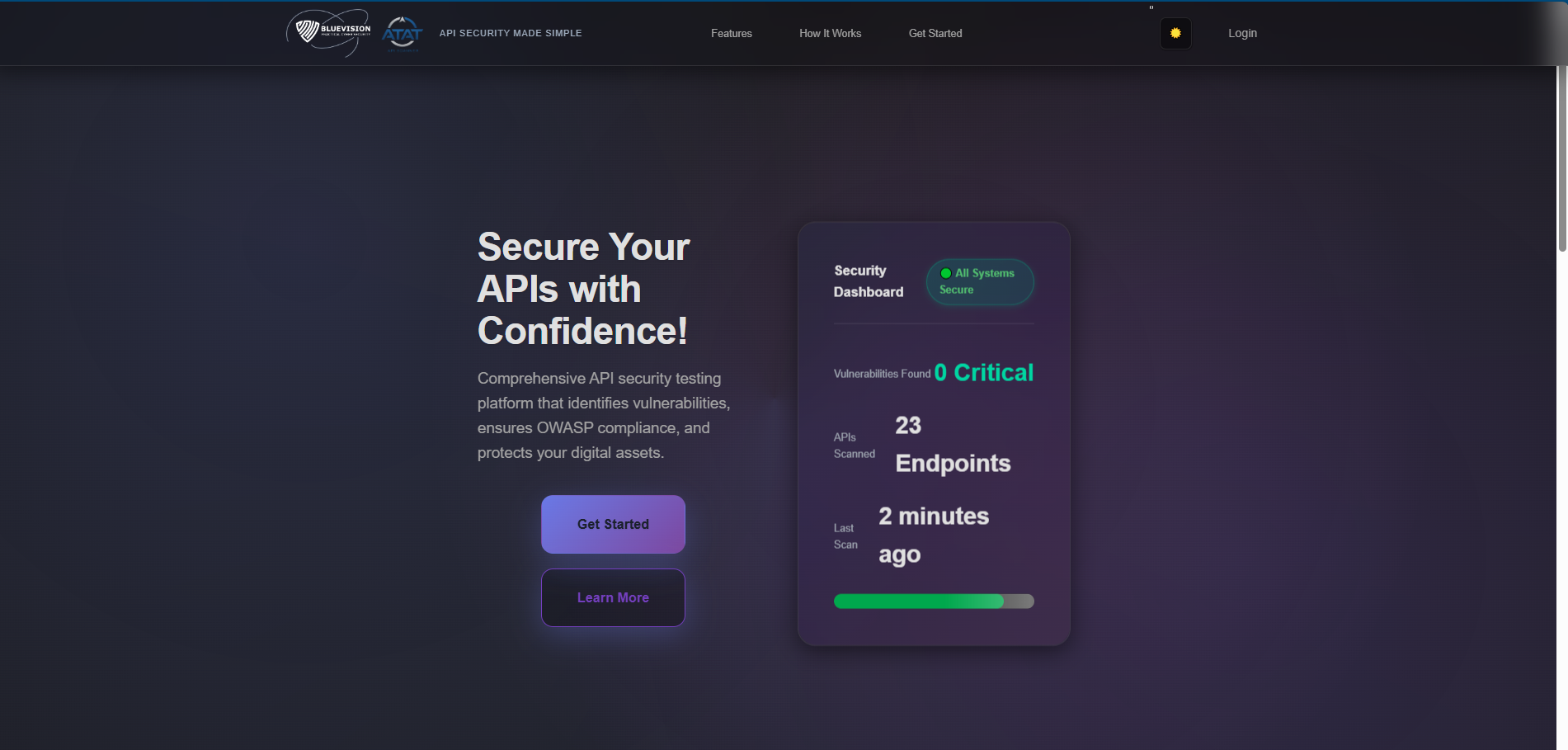

You should see the AT-AT UI. home

Log in
Upload a spec to test backend connectivity
Verify localhost:3001 and localhost:9011 are active

8. Docker

docker build -f dockerfile -t atat .
docker run --rm -p 3000:3000 -p 3001:3001 -p 9011:9011 atat

Common Troubleshooting

Issue	Fix
`allowedHosts` error	Add `HOST=0.0.0.0` and `DANGEROUSLY_DISABLE_HOST_CHECK=true`
Supabase not loading	Ensure all `.env` files have correct `SUPABASE_URL` and `SUPABASE_KEY`
Python crash on `dotenv`	Run `pip install python-dotenv`

Final Notes

GitHub Actions CI/CD is available and runs tests on pull requests.
This setup is for local development.
