SRS document

SRS Document for Demo 1 as of 28 May 2025 - Will be updated as the project continues to change to fit with the Agile methodology.

Table of Contents

• Introduction
• Functional Requirements
• User Stories
• Domain Model
• Use Case Diagrams
• Architectural Constraints
• Architectural Quality Requirements
• Non-Functional Requirements
• Architectural Patterns
• Technology Requirements
• Service Contracts
• Testing Policy Document
• Appendix

Introduction

This document serves as a blueprint of our team’s approach in defining the architectural framework for our API Threat Assessment Tool (or AT-AT for short). AT-AT is an innovative platformed designed to help secure and test web-based APIs.

With the growing reliance on APIs in digital systems, there is a critical need to be able to ensure that they are secure, and safe from attackers. AT-AT adresses this need by delivering a web-based platform that allows users to import their API specifications and dynamically scan and test and then generate a comprehensive assessment report of the results.

Functional Requirements

Authentication

• R1: The users must be able to sign up

  • R1.1: Using a sign up form. The form should gather the following:
    • R1.1.1:Email adress
    • R1.1.2:Password
    • R1.1.3:First Name
    • R1.1.4:Last Name
  • R1.2 Using existing platforms:
    • R1.2.1: Google account

• R2: The user must be able to sign in

  • R2.1: Using their email and password
    • R2.1.1: Credentials must be validated
  • R2.2: Using existing platforms:
    • R2.2.1: Google account

• R3: The user must be able to select “forgot password”

  • R3.1: The system must be able to use their email adress to identify if an account exists
  • R3.2: If an account exists an email should be sent with instructions on how to reset their password

Authorization

• R1: The system must provide restricted features based on roles
  • R1.1: Basic users can scan APIs and view their own reports
  • R1.2: Admin users can view and manage all users and scan data

API Specification Input

• R1: Users must be able to submit API specifications
  • R1.1: Upload OpenAPI/Swagger files
  • R1.2: Upload Postman Collections
  • R1.3: Provide URL to fetch the API Specification remotely
  • R1.4: Validate file structure before storing

Heuristic API Discovery

• R1: The system must support specification-less scanning
  • R1.1: Based on a target API domain
  • R1.2: User Heuristic and Traffic-based pattern detection to infer endpoints
  • R1.3: Automatically build testable endpoints for undocumented APIs

Scan Configuration

• R1 Users must be able to select a scan profile from a list of options
  • R1.1: OWASP Top 10 Quick Scan
  • R1.2: Full Comprehensive Scan
  • R1.3: Authentication & Authorization Focus

API Vulnerability Scanning

• R1: The system must support automated scanning
  • R1.1: Perform static analsysis on uploaded specifications
  • R1.2: Perform dynamic runtime analysis on live APIs
  • R1.3: Detect OWASP API Top 10 Vulnerabilities

API Behavior & Health Monitoring

• R1: The system must analyze API responses during scanning

  • R1.1: Identify abnormal HTTP status codes (e.g., 5xx, 4xx where unexpected)
  • R1.2: Detect insecure default configurations or misbehavior (e.g., exposing stack traces, reflection of payloads)

• R2: The system must detect and flag usage of outdated or insecure packages

  • R2.1: Scan dependency metadata in OpenAPI/Swagger specs
  • R2.2: Use vulnerability databases (e.g., CVE, Snyk API, GitHub Advisory DB) to check for known issues
  • R2.3: Highlight specific libraries and their affected versions

• R3: The system must correlate scan output with known vulnerability patterns

  • R3.1: Use rule-based or AI-assisted pattern matching to increase detection accuracy
  • R3.2: Provide contextual information on abnormal responses (e.g., unexpected content-type, slow response time, inconsistent structure)

Report Generation

• R1: After each scan, a report must be generated
  • R1.1: Report must include a list of vulnerabilities found, severity levels and endpoints affected
  • R1.2: Report will include recommendations on how to improve security
  • R1.3: Allow report to be exported as a pdf
  • R1.4: Include a security score metric for the API
  • R1.5: Detailed summary for high-level overview

Endpoint Management

• R1: The system must allow users to manage endpoints from imported API specifications
  • R1.1: List all available endpoints
  • R1.2: Retrieve details of a specific endpoint
    • R1.2.1: Return path, method, tags, and security metadata
  • R1.3: (todo) Return endpoint list scoped by API ID

Endpoint Tagging

• R1: The system must allow tagging of API endpoints
  • R1.1: Add tags to a given endpoint
    • R1.1.1: Tags should be user-defined or selected from a predefined list
    • R1.1.2: Tags such as “admin only”, “sensitive”, “deprecated” should be available
  • R1.2: Remove specific tags from an endpoint
  • R1.3: Replace all tags for an endpoint
  • R1.4: Retrieve a list of all known tags in the system

User Stories/Characteristics

A New User’s Characteristics

Any user who has not created an AT-AT account before.

As a New User I would like to:

• Sign up with Google so that I can register quickly without filling out long forms

• Sign up with GitHub so that my developer identity is easily linked

• Sign up using an email and password so I can use AT-AT independently of other platforms

An Existing User’s Characteristics

Any user who has previously registered on AT-AT.

As an Existing User I would like to:

• Sign in with Google or GitHub to quickly access my account

• Log in using my email and password if I prefer traditional sign-in methods

• Change my password in case I want to improve my account security

• Update my profile information (name, organization, usage preferences)

• Delete my account if I no longer want to use the system

A Developer’s Characteristics

A developer is someone preparing their API for production or release, and wants to ensure it’s secure.

As a Developer I would like to:

• Upload my API specification file (OpenAPI or Postman) so AT-AT can assess it

• Run a quick scan against the OWASP Top 10 so I can identify common vulnerabilities

• Select a scan profile based on depth or speed so I can test in different environments

• View a vulnerability report that highlights issues and suggests fixes

• Add tags to endpoints to indicate sensitivity or access level

• Export the report in PDF so I can use it/look at it later

• Save the scan session so I can review or share results later

A Security Analyst’s Characteristics

A security analyst is responsible for verifying and auditing the security posture of APIs across multiple teams.

As a Security Analyst I would like to:

• Run deep scans on production and staging APIs to uncover hidden vulnerabilities

• Use heuristic scanning to discover undocumented endpoints that might be exposed

• Customize scanning profiles to target specific threat models or attack vectors

• Review detailed vulnerability metadata and logs for compliance auditing

• Export reports in JSON so I can ingest results into my existing SIEM system

• View a visual dashboard of historical scans and trends to monitor system health over time

• Label endpoints using tags such as ‘admin only’ or ‘public’ to improve API classification

• Track endpoint metadata to assess security risk based on exposure and tags

A Penetration Tester’s Characteristics

A pentester actively simulates attacks against APIs to discover exploitable flaws.

As a Penetration Tester I would like to:

• Launch manual attack simulations like brute force, token theft, and injection attempts

• Enable red team mode to simulate multi-step attack chains for a more realistic threat assessment

• Use the CLI version of AT-AT so I can integrate it into my own automated testing pipelines

• Validate authentication flows to find weaknesses in token or session handling

• Test different input payloads and see how the API behaves under fuzzing conditions

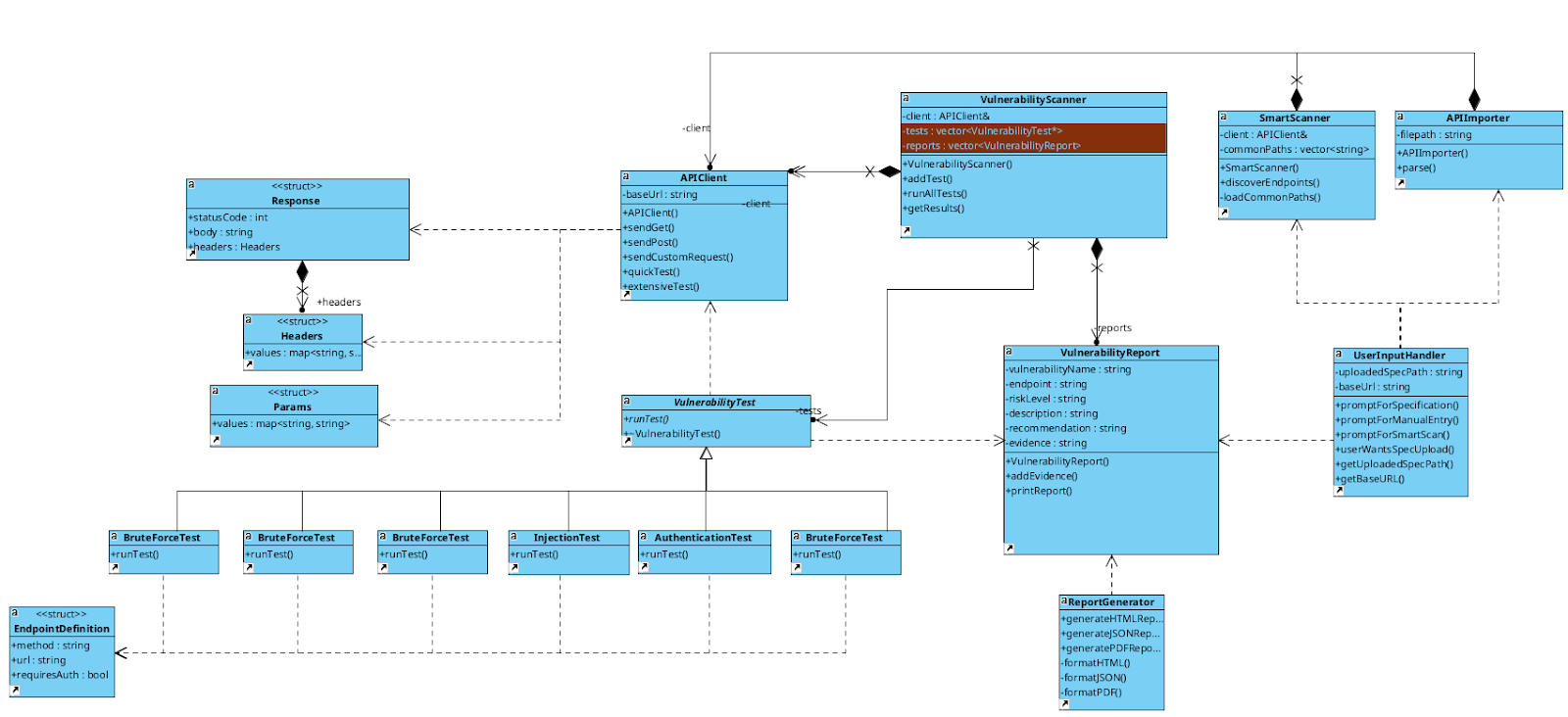

Domain Model

Right click on image and press on open imnage in new tab if you want to read it more clearly/in larger scale

Use case Diagrams

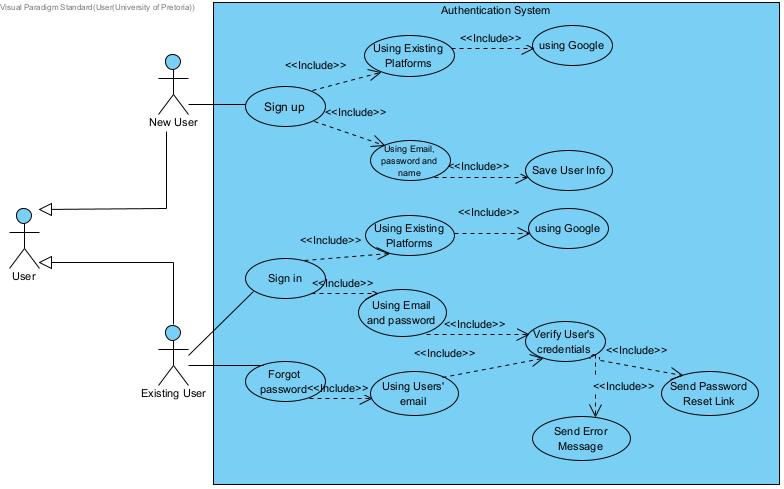

Authentication

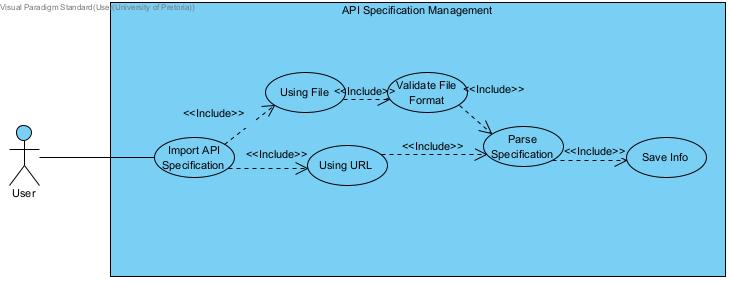

API Specification Input

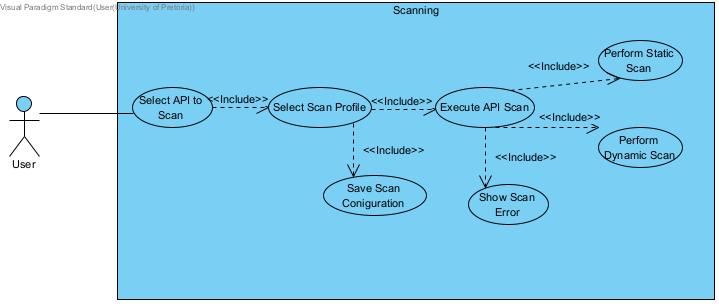

Scanning

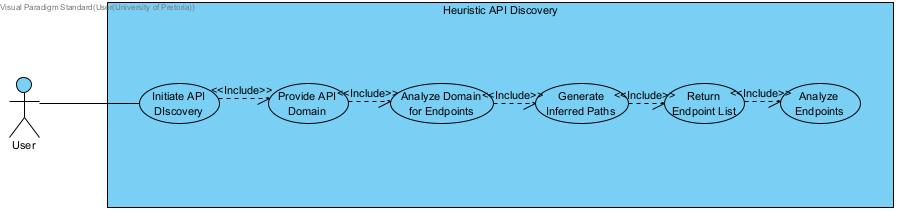

Heuristic Discovery

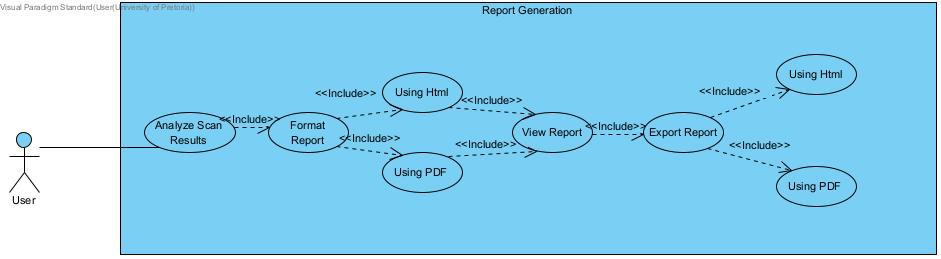

Reports

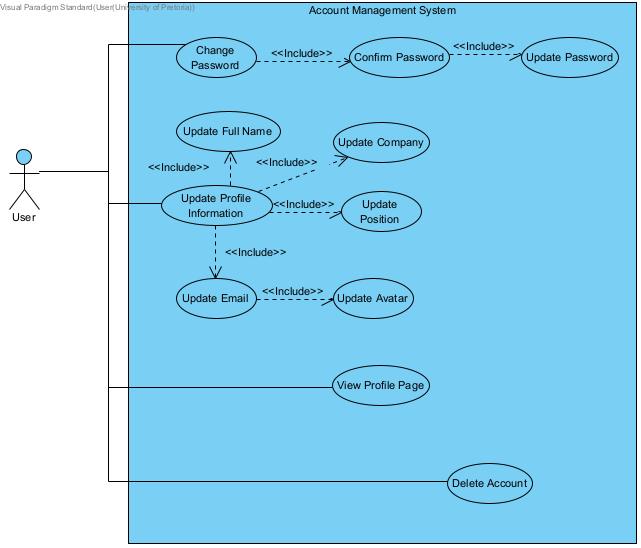

Account Management System

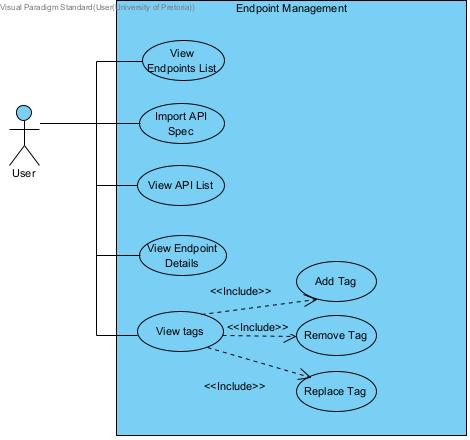

Endpoint Management

Architectural Constraints

Deployment

The AT-AT system will be deployed on a VPS provided by BITM, using Docker for containerization. This ensures consistent development, testing, and production environments. The use of Docker Compose simplifies orchestration and deployment of backend and frontend services.

Security

The system uses industry-standard authentication protocols such as OAuth 2.0 and JWTs for secure login and authorization. Sensitive data is encrypted at rest (AES) and in transit (TLS). Role-Based Access Control (RBAC) restricts access to features and reports.

Cost

Since hosting infrastructure is provided by the client (BITM), the team must remain within resource limits and avoid using excessive third-party APIs. Optional integrations (e.g., Snyk, Burp Suite API) will only be added if budget and technical feasibility allow.

Reliability

Docker and GitHub Actions ensure high reliability through automated CI/CD and consistent builds. Uptime monitoring tools like Uptime Robot and fail-safe error handling mechanisms help ensure continuous availability and reduce downtime.

Architectural Quality Requirements

Security

Security is paramount for a vulnerability assessment platform. The system must enforce strong authentication, secure transmission and storage of data, and role-based access to restrict sensitive information. This ensures trust, regulatory compliance, and protection from malicious users.

Measured by: maybe add percentage of data stored in plaintext

currently, mentioned oauth 2,0 in archtitectural constraints but the current version uses passwords and hashes, architectural constraints are of the end protect and quality requirements are of current version probably drop compatibility

• Access control test results

• Penetration testing

• Static and dynamic vulnerability scans

• R1.1: Secure Authentication

  • R1.1.1: Users must authenticate with hashed credentials.
    Implementation: Bcrypt will be used for password hashing with appropriate salting.
  • R1.1.2: Sessions must be stateless and securely maintained.
    Implementation: JWTs (signed with a private key) will be used and stored securely on the client side.

• R1.2: Role-Based Access Control (RBAC)

  • R1.2.1: Different access levels must exist for users, analysts, and admins.
    Implementation: Endpoints will be guarded using middleware that checks role claims embedded in the JWT.

• R1.3: Secure Transmission and Storage

  • R1.3.1: All API requests and responses must be encrypted in transit.
    Implementation: HTTPS (TLS 1.2+) will be enforced via nginx or similar reverse proxy.

  • R1.3.2: Sensitive data must be encrypted at rest.
    Implementation: AES-256 encryption will be used for storing API keys, scan configs, and user tokens.

Performance

Performance is critical due to the compute-intensive nature of scanning APIs. Users expect fast feedback without interface lag or failure during long scans.

Measured by:

• Scan completion time

• File processing speed

• API latency benchmarks

• R2.1: Responsive UI During Scans

  • R2.1.1: Users should see real-time feedback during scans.
    Implementation: A status polling system using WebSockets or polling will be integrated into the frontend.

  • R2.1.2: The UI should not freeze during uploads or scans.
    Implementation: All operations will be asynchronous, with loading indicators and retry logic.

• R2.2: Scan Completion Targets

  • R2.2.1: 90% of scans should complete within 2 minutes on stable networks.
    Implementation: Smart scan throttling and resource allocation will be used server-side.

  • R2.2.2: Large files (up to 5MB) should be accepted without timeout.
    Implementation: Chunked file upload and streaming to disk will be employed.

Usability

For both developers and security professionals, the interface must be intuitive, concise, and reduce friction in task execution. The goal is to maximize system adoption by minimizing confusion and learning curve.

Measured by:

• User feedback

• Support queries

• Task completion rates

• R3.1: Simple Navigation

  • R3.1.1: Users must easily find scanning and reporting features.
    Implementation: Clear sidebar and breadcrumb navigation using a consistent component library (e.g., MUI or shadcn).

  • R3.1.2: Form inputs must guide the user through step-by-step scan setup.
    Implementation: Tooltips and progressive form sections will be used.

• R3.2: Visual Feedback

  • R3.2.1: Users must receive confirmation for actions.
    Implementation: Toast messages and modals will display confirmation or error results.

  • R3.2.2: Critical errors must show remediation suggestions.
    Implementation: Structured messages with documentation links will be displayed in scan reports.

Compatibility

AT-AT must run in any modern browser and allow specification imports from common formats.

Measured by:

• Browser/device testing

• File support validation

• Mobile responsiveness

• R4.1: Browser and Device Compatibility

  • R4.1.1: The system must work in Chrome, Firefox, and Edge.
    Implementation: Regular browser testing and linting with ESLint + Prettier + browserlist.

  • R4.1.2: Pages must adapt to mobile and tablets.
    Implementation: CSS Grid/Flexbox and responsive breakpoints will be used.

• R4.2: Supported File Formats

  • R4.2.1: Upload of OpenAPI, Swagger, and Postman collections is required.
    Implementation: File validation logic will parse .json, .yaml, and .zip correctly before processing.

Reliability

As a critical assessment tool, users must trust AT-AT to always be available, recover gracefully from crashes, and log all operations for audit purposes.

Measured by:

• Uptime percentage

• Recovery time objective (RTO)

• System logs and error rates

• R5.1: High Availability

  • R5.1.1: The system must maintain >99% uptime post-deployment.
    Implementation: Docker containers will be monitored with auto-restart policies.

• R5.2: Deployment and Update Resilience

  • R5.2.1: New features must deploy with zero downtime.
    Implementation: GitHub Actions + reverse proxy blue-green deployment setup.

• R5.3: Error Monitoring and Alerts

  • R5.3.1: System errors must be logged and developers notified.
    Implementation: A log aggregator like Logtail or custom webhook will track critical backend crashes.

Non-Functional Requirements

These define system qualities such as performance, reliability, maintainability, security, and usability, and complement the functional requirements.

---

• NFR1: Performance

  • NFR1.1: The system must respond to user actions (e.g., login, upload) within 500ms under normal conditions.
  • NFR1.2: The system must complete API scan operations within 10 seconds for standard OpenAPI files smaller than 500KB.
  • NFR1.3: The UI must render initial content within 2 seconds on standard 4G mobile or broadband connections.

• NFR2: Security

  • NFR2.1: All data transmission must use HTTPS with TLS encryption.
  • NFR2.2: User passwords must be hashed using a secure algorithm such as bcrypt before being stored.
  • NFR2.3: Access to protected routes must be authorized via JWT tokens and validated on every request.
  • NFR2.4: API specification files must be scanned in isolation from other user data to prevent interference or injection attacks.

• NFR3: Scalability

  • NFR3.1: The system must support up to 100 concurrent users without significant degradation in response time (more than 2 seconds).
  • NFR3.2: The backend must be able to queue and process multiple scan jobs in parallel using asynchronous operations.

• NFR4: Reliability and Availability

  • NFR4.1: The system should have 99% uptime, excluding scheduled maintenance windows.
  • NFR4.2: In case of a backend failure, the frontend must show graceful error messages instead of crashing.
  • NFR4.3: Scan jobs must be persisted or retried in case of transient system errors such as I/O failure.

• NFR5: Usability

  • NFR5.1: All pages must include consistent navigation and feedback such as loaders and confirmation messages.
  • NFR5.2: Error messages must be specific and actionable, especially for scan failures or invalid files.
  • NFR5.3: The application must be mobile-friendly and responsive.

• NFR6: Maintainability and Documentation

  • NFR6.1: The codebase must be documented with inline comments and usage guides including README and API docs.
  • NFR6.2: Environment variables must be loaded from a .env file and documented clearly in developer setup instructions.
  • NFR6.3: The API layer must follow RESTful conventions to ensure consistency.

Architectural Patterns

Client-Server Architecture

AT-AT adopts a traditional Client–Server model where responsibilities are cleanly split between a React-based frontend and a Python backend. The frontend is responsible for presenting the UI and initiating user actions (e.g., initiating scans, uploading specs), while the backend handles all business logic, authentication, and database operations.

This separation allows independent development, testing, and deployment of the frontend and backend systems.

• Client: React (browser-based UI)
• Server: Python (REST API)
• Benefits: Decoupled development, scalability, clear role separation

Rest API

The communication between the frontend and backend is implemented through a RESTful API design. Each resource (e.g., scan, report, user) is accessible via predictable endpoints and HTTP methods (GET, POST, PATCH, DELETE).

REST principles such as statelessness, resource-based URIs, and standard response codes are followed to ensure interoperability and scalability.

• Example: POST /api/scan/start, GET /api/report/{scan_id}
• Benefits: Loose coupling, platform independence, caching, easy documentation

Model–View–Controller (MVC) Pattern in React

While React is not strictly bound to MVC, AT-AT’s implementation applies the MVC pattern conceptually:

• Model: App state and API responses (e.g., scan configs, reports)
• View: React components responsible for rendering UI
• Controller: Event handlers and React hooks controlling business interaction (e.g., handleScanSubmit())

This logical separation improves maintainability and reusability, especially in complex UI flows.

• Benefits: Clear state management, modularity, separation of concerns

Layered (n-Tier) Architecture

AT-AT is organized into a 3-tier architecture, where each layer is responsible for a specific concern. This is a natural consequence of combining a React frontend with a Python backend and PostgreSQL database.

Layer	Description
Presentation Layer	The React frontend (UI) where users interact
Business Logic Layer	The Python service layer handling validation, auth, scan orchestration
Persistence Layer	PostgreSQL storing users, scan history, specs, reports

These layers are loosely coupled but highly cohesive internally, improving maintainability and scalability. The client-server model sits atop this architecture as a deployment pattern.

• Benefits: Scalability, separation of concerns, easy testing, modular growth

Service Contracts

The service contracts are implemented unless stated otherwise.

User Authentication Service

Element	Description
Purpose	Handles secure user registration, login, and token-based session handling
Input	JSON with email, password, username, firstName, lastName
Output	User object and session or error message
Endpoint	POST /api/auth/signup, POST /api/auth/login, POST /api/auth/logout, GET /api/auth/profile

API Specification Import Service

Element	Description
Purpose	Allows users to upload OpenAPI specifications for analysis
Input	File upload via multipart/form-data or raw JSON
Output	API ID reference or error
Endpoint	POST /api/import

Vulnerability Scanning Service

Element	Description
Purpose	Executes a scan on an imported API specification
Input	JSON with api_id
Output	Scan ID and scan initiation confirmation
Endpoint	POST /scan

Scan Status Service

Element	Description
Purpose	Retrieve the current status of a scan job
Input	Path parameter: scanId
Output	JSON with scan status and timestamps
Endpoint	GET /status/:scanId

Scan Results Service

Element	Description
Purpose	Fetch the results of a completed scan
Input	Path parameter: scanId
Output	Scan report in JSON format
Endpoint	GET /results/:scanId

Endpoint Tagging Service

Element	Description
Purpose	Add, remove, or replace tags on detected API endpoints
Input	JSON with endpoint_id and tags[]
Output	Success/failure confirmation
Endpoint	POST /api/endpoints/tags/add, POST /api/endpoints/tags/remove, POST /api/endpoints/tags/replace

Endpoint Listing Service

Element	Description
Purpose	Retrieve a list of endpoints for a given API
Input	JSON with api_id
Output	Array of endpoint objects
Endpoint	POST /api/endpoints

Endpoint Detail Service

Element	Description
Purpose	Get full metadata for a specific endpoint
Input	JSON with endpoint_id
Output	Endpoint details
Endpoint	POST /api/endpoints/details

Tag Listing Service

Element	Description
Purpose	List all unique tags used in the system
Input	None
Output	Array of strings (tags)
Endpoint	GET /api/tags

Admin User Listing Service

Element	Description
Purpose	Return a list of all users (for admins or debugging)
Input	None
Output	Array of user objects
Endpoint	GET /users

General Health Check Service

Element	Description
Purpose	Root route to verify system is running
Input	None
Output	Service status confirmation
Endpoint	GET /

Report Generation Service (todo)

Element	Description
Purpose	Generates a downloadable report for a scan
Input	Path param: scan_id, optional query: format=pdf/json/html
Output	Formatted report content
Endpoint	GET /api/report/{scan_id}

API Specification Listing Service (todo)

Element	Description
Purpose	List uploaded specs for a user
Input	None
Output	List of specs
Endpoint	GET /api/spec/list

API Specification Deletion Service (todo)

Element	Description
Purpose	Delete an uploaded spec from storage
Input	Path parameter: id
Output	Confirmation or error
Endpoint	DELETE /api/spec/:id

API Specification Validation Service (todo)

Element	Description
Purpose	Validate format and structure of a given spec
Input	Uploaded file
Output	Format validity status
Endpoint	POST /api/spec/validate

Technology Requirements

Mono Repository Management

Markdown badges on github

Tool: GitHub (Monorepo)

Advantage: Enables centralized version control, seamless collaboration, and simplified CI/CD workflows by organizing all backend, frontend, and shared libraries in a single unified repository.

Backend Framework

Tool: Python + Node

Advantage: Provides high-performance asynchronous capabilities, automatic documentation generation via OpenAPI, and easy integration with security testing libraries.

Frontend Framework

Tool: React

Advantage: Offers a component-based architecture and real-time UI updates, enabling the development of responsive and intuitive interfaces for users to manage scans and view reports.

Considered Alternative: Angular

Reason for choice over Alternative: React had more flexibility as well as our UX Engineers being more experienced in using it

API

Tool: JavaScript(Express.js/Node.js)

Advantage: Enables rapid development of RESTful endpoints with clean routing, middleware support, and integration with authentication and CI/CD systems.

Containerization

Tool: Docker

Advantage: Ensures consistent environments across development, testing, and production, making it easy to deploy and scale microservices securely and efficiently.

Database

Tool: PostgreSQL - Supabase

Advantage: Offers strong ACID compliance and advanced querying capabilities, suitable for storing structured vulnerability data, scan logs, user credentials, and role-based access settings.

**Considered Alternative:**MongoDB

**Reason for choice over Alternative:**MongoDB’s schema-less design would have introduced complexity in managing relational scan data.

Authentication

Tool: OAuth 2.0 (Google/GitHub), JWT + Email/Password

Advantage: Supports secure, standardized login mechanisms with token-based sessions, enabling flexible integration with external identity providers.

Security Testing Tools

Tool: SQLMap, Burp Suite (optional), OWASP ZAP, Supabase

Advantage: Automates discovery of injection vulnerabilities, misconfigurations, and broken authentication flows as part of the scan engine.

Unit / Integration Testing

Tool: Pytest

Advantage: Provides lightweight and scalable test automation with rich plugin support for testing scanning logic, service layers, and database interactions.

End-to-End Testing

Tool: Playwright or Cypress

Advantage: Enables full workflow simulation and test coverage of the frontend-backend integration, ensuring real-world reliability.

CI/CD Pipeline

Tool: GitHub Actions

Advantage: Automates testing, linting, building, and deployment with workflows triggered by pull requests and merges, ensuring continuous integration and delivery.

Documentation: Wiki & Guides

Tool: Github + Markdown + Starlight (Astro)

Advantage: Allows clean, navigable documentation hosted alongside the codebase, supporting developer onboarding and client transparency.

Design and Wireframes

Tool: Figma

Advantage: Enables collaborative UX/UI design and iteration before development, ensuring clear structure and stakeholder feedback.

Appendix

Old Domain model as it was at demo 1
